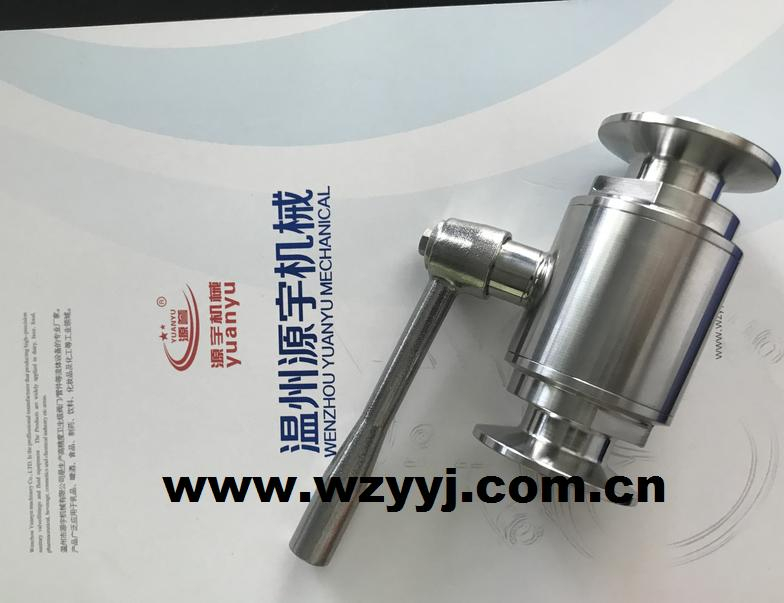

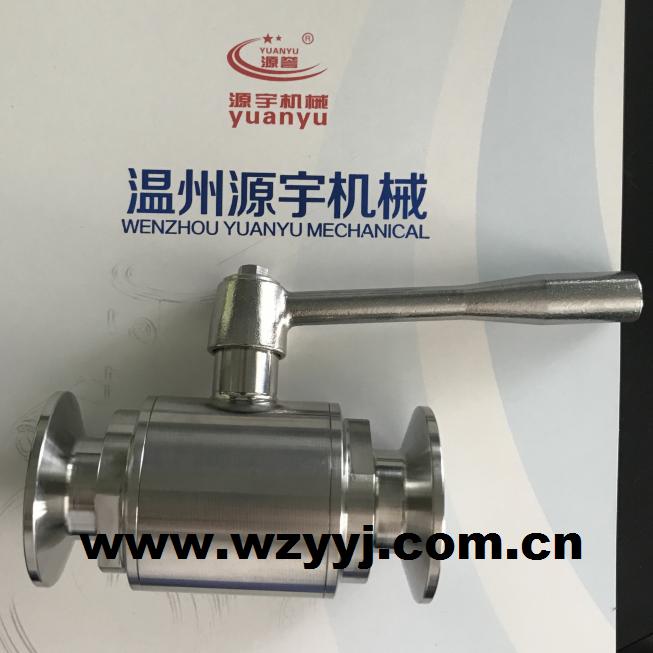

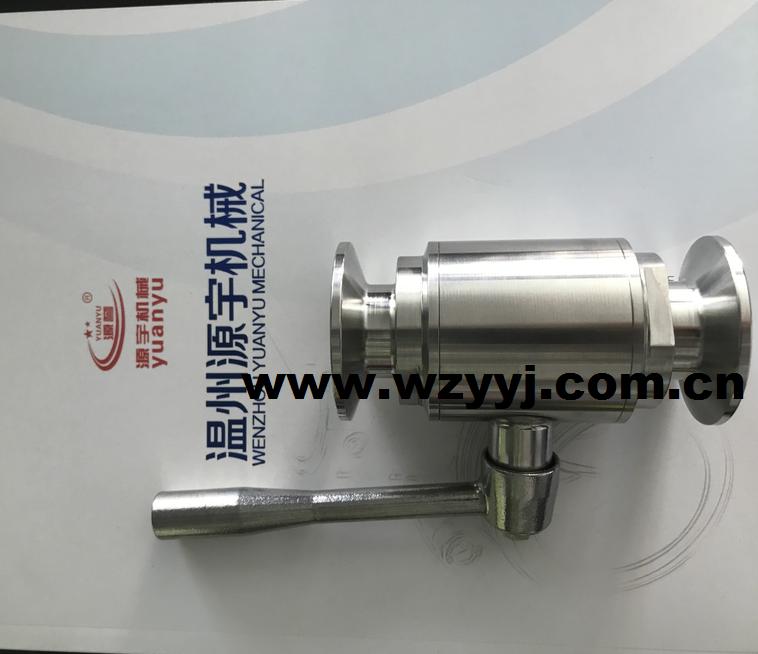

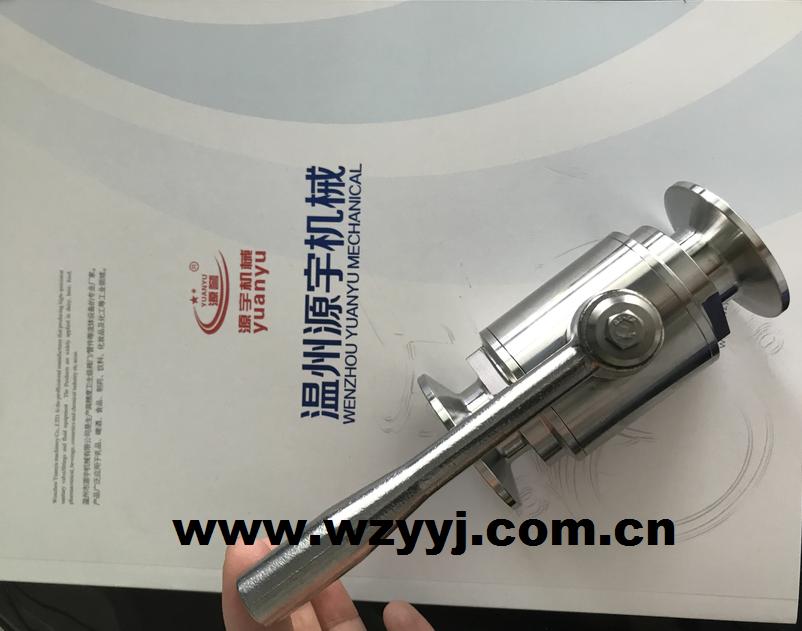

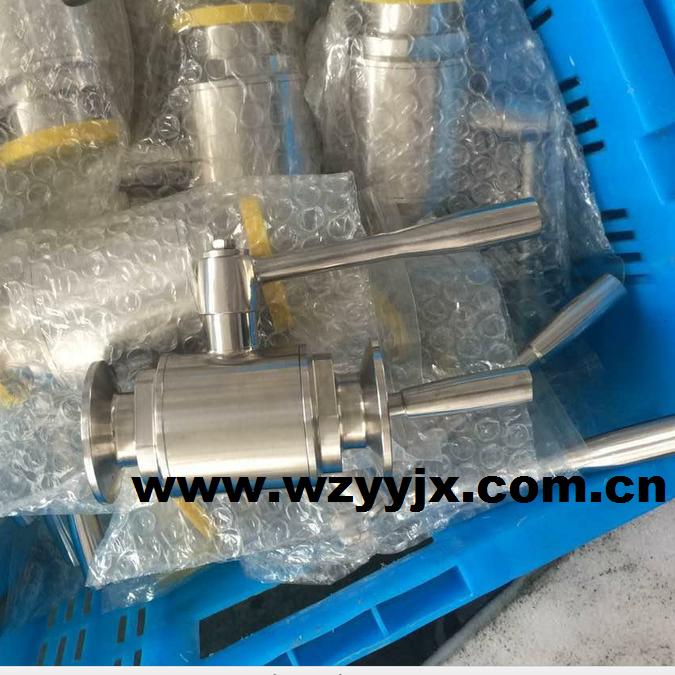

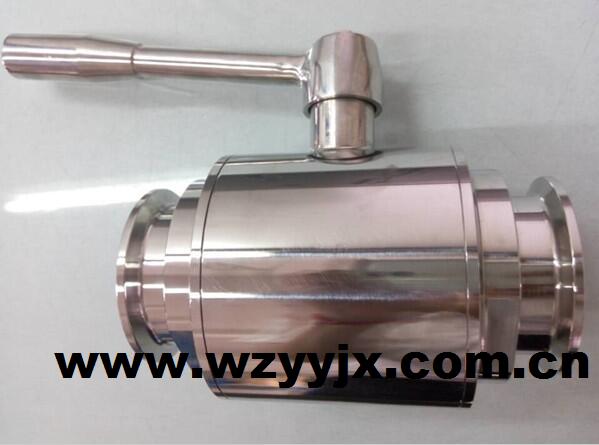

Stainless Steel Clamp Ball Valve (New Type)

Stainless Steel Clamp Ball Valve (New Type)

Materials
Materials: AISI-304, AISI-316L
Size: 1"-4"&DN25-DN100
FDA Seal
Valve seat: PTFE Gasket
Design Features
Maintenance free operation
Compact and portable
Small operating torque
Valve seals and gaskets comply with FDA 177.2600
Manual handle, pneumatic actuator, electric actuator are interchangeable.
Technical Specification
Sizes available from DN15-1/2" to DN100-4"
Max. Working pressure (PTFE): 10bar (147psi)
Temperature range (PTFE): -20 ~ 350° F
End connections: Sanitary clamp, butt-welded, threaded, flanged, I-line or others on request.
Surface treatment: Ra 16 ~ 32µ In (0.4 ~ 0.8µ M)
Supply pressure for air actuator: 70 ~ 115psi
