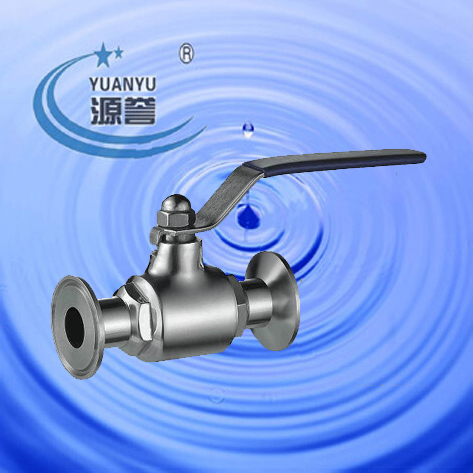

Sanitary Ball Valve
1)Size: DN15-DN200 1"-6"
2)Standard: DIN, SMS, 3A, ISO/IDF, BS/RJT, ASME/BPE
3)Material: SUS304/SUS316L, AISI304, AISI316L
4)Sealing Material: PTEE, O type seal ring(EPDM/VMQ)
5)Connection: Weld, clamp, thread connections.
6)Work pressure: 0~16bar
7)Working Temperature: -25degree~250degree.
8)Application: Dairy, beer, food, beverage, pharmacy, biotechnology, etc
9)Working principle: Through 90degree rotary handle, drive the ball body which have transfixion cavity and precise manufacture to open or close the valve, reach control the flow rate of medium.
Manual operation: Pulling handle, multi-operation.
Don't hesitate to contact us if you need more details or catalogue. We can produce this kind of product according to your requirement if your specification is out of our standard.
