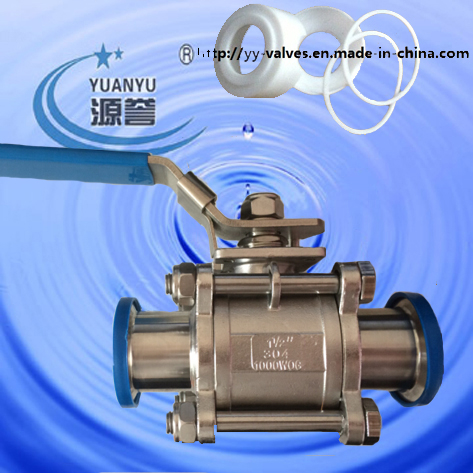

Sanitary 3pcs Ball Valve (Fulled Cavity PTFE Seat)

Sanitary 3pcs Ball Valve (Fulled Cavity PTFE Seat)

The valve range consists of hygienic full-bore ball valves that combine reliable, full-flow performance and economical on/off control with minimal pressure drop

With a straightforward, low-maintenance design, these valves consistently provide a high flow rate through an unobstructed flow path, making them the ball valve of choice for flow control in most hygienic fluid-handling systems.

Details
Three-Piece Swing-Out Design Allows In-Line Maintenance, Precision Investment Cast Body, Blow-Out Proof Stem, Gland Nut Design for Easy Maintenance,  Internal Flow Path and Contact surface of End Cap Polished.

Pressure Rating(body): 1000PSI   /1000WOG
Port Orifice: Santiary Straight Port
Sizes Available: 1/2"-4"
Outside treatment: Electro polished
Inside treatment:  0.32um
Seal:Cavity Filled PTFESeats
Material: 316L or 304 can be chosen
Equiped with Locking device
Connection Mode: Triclamp, (Weld, Male Can be chosen)

This kind of valve widely used in pharmacy, food, dairy,beverage industies.

As a manufacturer, we can produce according to customer's requirement.
