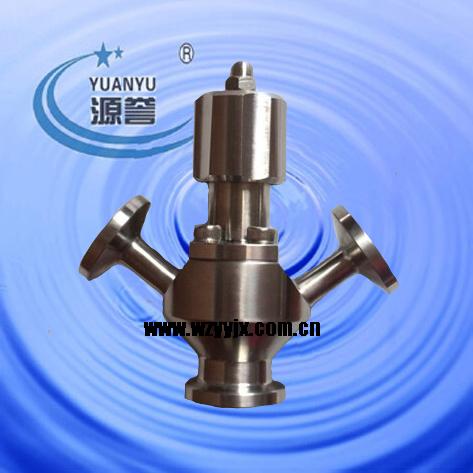

Aseptic Sample Valve For Steam Sterilization

Aseptic Sample Valve For Steam Sterilization

The valve body is machined by a whole forged and solid bar stock.

Connection: Triclamp style

Standard: 3A,DIN,SMS,ASME,BPE

Material: AISI304/ AISI316L

Seal:PTFE Diaphragm.

Maximum Pressure 10bar.

Maximum Temperature 135°C/275°F.

Application :

The Type of valve series are designed to use before and after doing sterilize treatment.

Open Valve:Sampling

To open valve can through rotary handle (adjust type valve) or switch lever (open or close valve.When the central spindle and diaphragm have opened,the fluid can through sample valve.

Close Valve: Sterilization Sample

Reverse operation handle,built-in-spring can close valve,meanwhile can keep the passageway through between the hosepipes,so that doing sterilization treatment .If need use the steam ,we suggest the customer instealled a small type of pressure adjust valve in the outlet.

Standard design:

The component of sterile  sample valve included three parts:one valve body ,one valve head and one piece diaphragm.Rubber diaphragm valve is putted in the cetral spindle of valve head,and use as a continual central spindle.

Valve Specification:



We can supple the valve specifications to customer:first one use to treatment low viscosity material ,such as water,beer,fluid milk and so on .second one us to trea high viscosity materials ,such as nutlet yoghourt,syrup,ice cream and so on.



As a manufacturer, we can produce according to your equirement.
