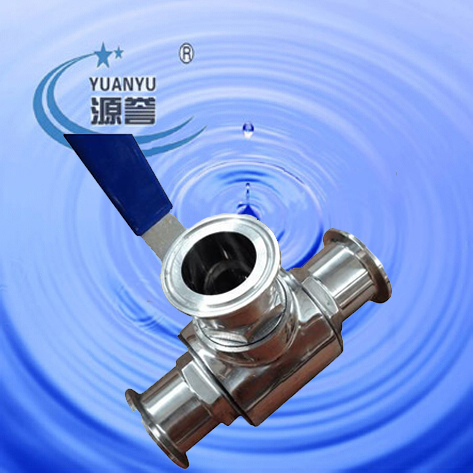

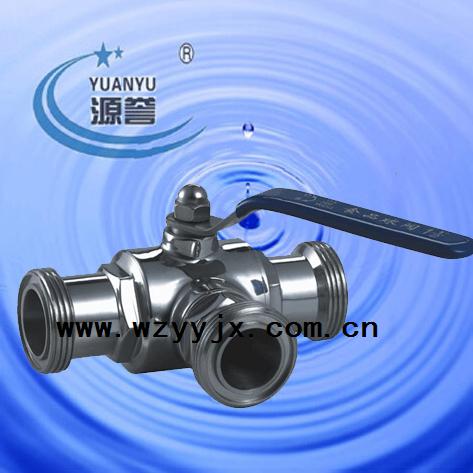

Sanitary Ball Valve (3-way Type)
1)Size: DN15-DN200 1"-6"
2)Standard: DIN, SMS, 3A, ISO/IDF, BS/RJT, ASME/BPE
3)Material: SUS304, SUS316L, AISI304, AISI316L
4)Sealing Material: PTEE, O type seal ring(EPDM/VMQ)
5)Connection: Weld, clamp, thread connections.
6)Working Temperature: -25degree~250degree.
7)Application: Dairy, beer, food, beverage, pharmacy, biotechnology, etc
8)Power: Pneumatic actuator.
Life of penumatic actuator is 100000 times turn.
Warranty: 3-guarantees within one year.
Air pressure of actuator is 0.4mpa~0.7mpa.
Don't hesitate to contact us if you need more details or catalogue. We can produce this kind of product according to your requirement if your specification is out of our standard.
