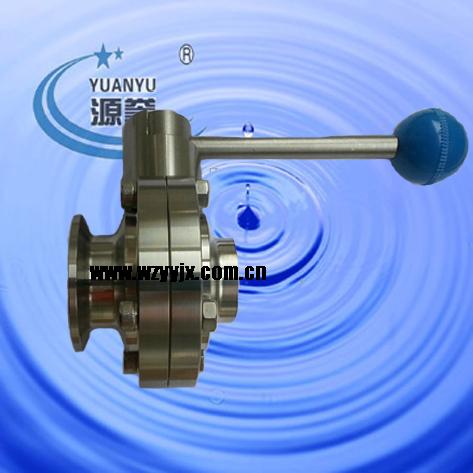

Sanitary Clamp/Weld Butterfly Valve
1)Material of valve: SUS304/SUS316L, AISI304, AISI316L
2)Size: DN20-DN150/1"-6"/25mm-152mm
3)Standard of valve: DIN, 3A, SMS, ISO/IDF, BS/RJTASME/BPE,
4)Material of seal: Silicon//EPDM/FPM FDA117.2600
5)Connection mode: Clamp/Weld Connection （Male, union,nut ,flange can be chosen）
6)Certification: Material inspection report
7)Power: Pulling handle/multi-position plastic handle/multi-position stainless steel handle/electric actuator/pneumatic head
8)Medium: Food, beverage, dairy, pharmacy.
Customized - upon your request
Sanitary Clamp/Weld Butterfly Valve
1)Material of valve: SUS304/SUS316L, AISI304, AISI316L
2)Size: DN20-DN150/1"-6"/25mm-152mm
3)Standard of valve: DIN, 3A, SMS, ISO/IDF, BS/RJTASME/BPE,
4)Material of seal: Silicon//EPDM/FPM FDA117.2600
5)Connection mode: Clamp/Weld Connection （Male, union,nut ,flange can be chosen）
6)Certification: Material inspection report
7)Power: Pulling handle/multi-position plastic handle/multi-position stainless steel handle/electric actuator/pneumatic head
8)Medium: Food, beverage, dairy, pharmacy.
Customized - upon your request
| Technical Data |
| Material | Contact with the product components | 304/316L(1.4306/1.4404) | Can provide material inspection report |
| Materal no contact with the product components | 304(1.4301) |
| Sealing material | Standard | silicon | Adopt sealing material with all the seal
material the FDA 117.2600 |
| Option | EPDM/FPM |
| Pressure | Pressure of work | 0-10 bar |
| Control air pressure | 5-8 bar |
| Temperature | Working temperature | Silicon:(-50~+180ºC) EPDM(-20~+135ºC) FPM(-30~+230ºC) |
| Sterilization temperature | 150ºC(Max 20min) |
| Surface treatment | Inside surface treatment | Ra≥0.4-0.8μm |
| Surface treatment | Ra≥0.8-1.6μm |
| Connection | Diameter Standard | DIN11850-2,DIN11850-1,3A,SMS,ISO,IDF,BS.... |
| Connection mode: | Clamp/Weld Connection( Male, union,nut ,flange can be chosen) |
| Optional driven | Brainpower |
| Pneumatic control | Pneumatic head and fixed bracket |
| Manual handle mode | pulling handle(round puling handle/ square pulling handle) Multi-position handle(stainless steel/plastic) |
