Sanitary Butterfly Valve (DN15-DN600)



Inquire Add to Basket

Model:
YYEBV-031
Origin:
Wenzhou Zhengjian China
Max order:
2000PCS/Month
Payment:
T/T

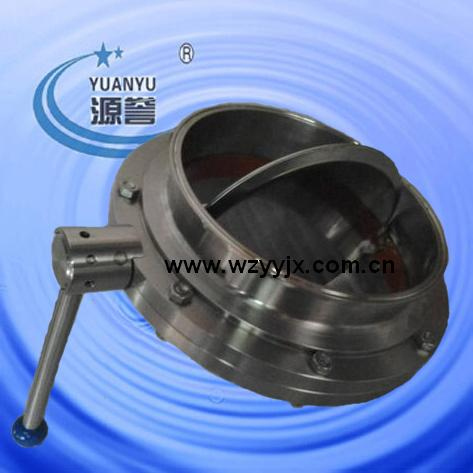

Sanitary Butterfly Valve (DN15-DN600)

1)Material of valve: SS304, SS316L
2)Size: DN15-DN600
3)Standard of valve: DIN, 3A, SMS, ISO, RJT, IDF
4)Material of seal: Silicone/EPDM/FPM FDA117.2600
5)Connection mode: Welding
(Clamp, Thread, Flange, Union Can be chosen)
6)Certification: Material inspection report, Metallurgical tests&pressure tests.
CE CERTIFICATE CAN BE PROVIDED
7)Power: Pulling handle
(multi-position plastic handle/multi-position stainless steel handle/electric actuator/pneumatic head can be chosen)
8)Three type of actuator: Normally open(NO), normally closed(NC), Double action
9)Work principle: This kind of valve can be handled by manual or an electric actuator, and also can be handled by a pneumatic actuator.

10)Medium: Food, beverage, dairy, pharmacy.

As a manufacturer, We can customize and design according to the customer's requirement if the specification is out of our standard.

Don't hesitate to contact us if you need more details or catalogue.

(DN15-DN600, OD=18mm-630mm)
(18mm,25mm,32mm,38mm,45mm,57mm,73mm,89mm,108mm,133mm,159mm,219mm,273mm,325mm,377mm,426mm,480mm,530mm,630mm)
Sanitary Butterfly Valve (DN15-DN600)

Split Butterfly Valve AB Valve Powder Valve For Containment Transfer

Mixproof Butterfly Valve For CIP System

Sanitary Pneumatic Butterfly Valve

Sanitary Butterfly Valve ( Stainless Steel Handle)

Stainless Steel Discharge Butterfly Valve

3-Way Sanitary Butterfly Valve with Pneumatic Actuator

Triclamp Butterfly Valve Center Suck Bolt Type

Triclamp Butterfly Valve Sanitary Stainless Steel

RJT Union Sanitary Butterfly Valve

Sanitary Tri-Clamp Butterfly Valve (Center Suck Bolt Type)

3A Male Female Butterfly Valve

Sanitary Ferrule Butterfly Valve

Sanitary Butterfly Valve With Plain End

Food-grade Butterfly Valve with Stainless Steel Multi-Position Handle

Sanitary Triclamp Butterfly Valve With Multi-position Handle

Explosion Proof Electric sanitary Butterfly Valve

Sanitary Pneumatic Butterfly Valve (Aluminum)

Sanitary Pneumatic Butterfly Valve With Limit Switch Box

Handle For Sanitary Butterfly Valve

Sanitary Electric Butterfly Valve

Technical Data
Material	Contact with the product components	304/316L(1.4306/1.4404)	Can provide material inspection report
	Materal no contact with the product components	304(1.4301)
Sealing material	Standard	silicon	Adopt sealing material with all the seal material the FDA 117.2600
	Option	EPDM/FPM
Pressure	Pressure of work	0-10 bar
	Control air pressure	5-8 bar
Temperature	Working temperature	Silicon:(-50~+180ºC) EPDM(-20~+135ºC) FPM(-30~+230ºC)
	Sterilization temperature	150ºC(Max 20min)
Surface treatment	Inside surface treatment	Ra≥0.4-0.8μm
	Surface treatment	Ra≥0.8-1.6μm
Connection	Diameter Standard	DIN11850-2,DIN11850-1,3A,SMS,ISO,IDF,BS....
	Connection mode:	Welded Connection (triclamp, male,union,flange,nut,3pcs)
Optional driven	Brainpower
	Pneumatic control	Pneumatic head and fixed bracket
Manual handle mode	pulling handle(round puling handle/ square pulling handle) Multi-position handle(stainless steel/plastic)

Technical Data
Material	Contact with the product components	304/316L(1.4306/1.4404)	Can provide material inspection report
	Materal no contact with the product components	304(1.4301)
Sealing material	Standard	silicon	Adopt sealing material with all the seal material the FDA 117.2600
	Option	EPDM/FPM
Pressure	Pressure of work	0-10 bar
	Control air pressure	5-8 bar
Temperature	Working temperature	Silicon:(-50~+180ºC) EPDM(-20~+135ºC) FPM(-30~+230ºC)
	Sterilization temperature	150ºC(Max 20min)
Surface treatment	Inside surface treatment	Ra≥0.4-0.8μm
	Surface treatment	Ra≥0.8-1.6μm
Connection	Diameter Standard	DIN11850-2,DIN11850-1,3A,SMS,ISO,IDF,BS....
	Connection mode:	Welded Connection (triclamp, male,union,flange,nut,3pcs)
Optional driven	Brainpower
	Pneumatic control	Pneumatic head and fixed bracket
Manual handle mode	pulling handle(round puling handle/ square pulling handle) Multi-position handle(stainless steel/plastic)
