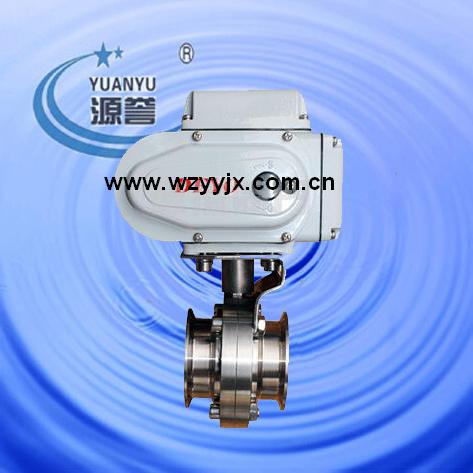

Sanitary Electric Butterfly Valve The uses and characteristics:
1)Electric actuator butterfly valve is made according to eletric polishing in standard, Smooth surface to ensure clean, no medium accumulation area, without potential pollution.
YYEBV-02 is fast installing valve, it is easy to open valve and repair, shortening process downtime.
Sanitary electric actuator butterfly valve are widely used in food, pharmacy, clean steam, beverage, wine, chemical industries.
It has the strength " compact structure, convenient installation ".
1, Novel and reasonable design, unique structure, light weight, open/close quickly.
2, Small operation torque, convenient operation, Energy smart.
3, Can be installed any direction, repair easily.
4, Sealing material feature: Ageing resistance, corrosion resistance, long service life.
Electric actuator:
Material of electric actuator: Aluminium alloy
IP =IP68
Working pressure: -20 degree~+60 degree
Rotary Range: 0-90 degree
Output torque: 50-2000Nm
Voltage: 24VDC, 110VAC, 220VAC, 380VAC
Input signal: 4-20mA, 0-10V. DC1-5V. DC
How to buy products:
For butterfly valve:
Please tell us: Normal size, Working pressure, medium, material of valve, connection end, Gasket material.
For electric actuator:
Please tell us: Voltage. Type: (On-off), regulating types can be chosen
Please contact us if you have any questions
CE Certificate can be provided. | Electric model: | Output torque | Rotary range | Voltage | Pressure | Normal size |
| YY-05 | 50-2000Nm | 0-90 degree | AC110V \ 220V \ 380V \ DC24V Can be chosen | Max.PN1.6MPA | DN25-DN65 |
| YY-10 | DN80-DN125 |
| YY-20 | DN150-DN200 |
| YY-40/60 | DN250 |
| YY-100 | DN300-DN350
|
