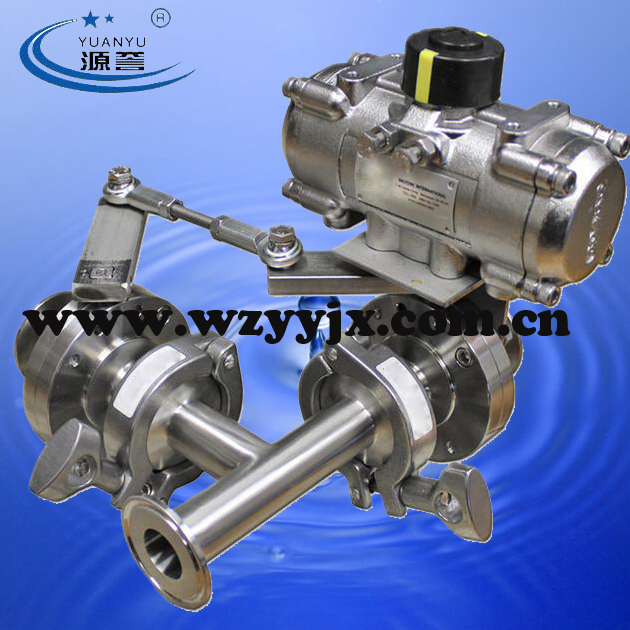

3-Way Sanitary Butterfly Valve with Pneumatic Actuator
3-Way Sanitary Butterfly Valve With Pneumatic Actuator
Sanitary 3-way butterfly valves in 304/316L stainless steel series stand above others in the sanitary and fine chemical fields. The valves incorporated an advanced design with characteristics unseen in other valves. All valves underwent extreme and extensive testing and field evaluation prior to introduction. 360 degree installation, Ideal for food services with 110PSI max at 150 degree. Available with pneumatic or electric stainless steel actuation with on/off and modulating options. Available sizes 1" - 6" 304/316L Stainless steel body Seat available options: silicone, EPDM and VITON Tri-clamp end connections Offered in manual or actuated packages; Actuated packages include either stainless steel pneumatic or electric actuation On/off or modulating options available Opposing body bolt design prevents loosening between body sections due to vibration and operation, and provides positive sealing Bolting is flush with body surface
Don't hesitate to contact us if you need more details of products. We can produce this kind of product according to your requirement if your specification is out of our standard.
CE CERTIFICATE CAN BE PROVIDED
3-Way Sanitary Butterfly Valve with Pneumatic Actuator
3-Way Sanitary Butterfly Valve With Pneumatic Actuator
Sanitary 3-way butterfly valves in 304/316L stainless steel series stand above others in the sanitary and fine chemical fields. The valves incorporated an advanced design with characteristics unseen in other valves. All valves underwent extreme and extensive testing and field evaluation prior to introduction. 360 degree installation, Ideal for food services with 110PSI max at 150 degree. Available with pneumatic or electric stainless steel actuation with on/off and modulating options. Available sizes 1" - 6" 304/316L Stainless steel body Seat available options: silicone, EPDM and VITON Tri-clamp end connections Offered in manual or actuated packages; Actuated packages include either stainless steel pneumatic or electric actuation On/off or modulating options available Opposing body bolt design prevents loosening between body sections due to vibration and operation, and provides positive sealing Bolting is flush with body surface
Don't hesitate to contact us if you need more details of products. We can produce this kind of product according to your requirement if your specification is out of our standard.
CE CERTIFICATE CAN BE PROVIDED
Technical Data
Material
Contact with the product components
304/316L(1.4306/1.4404)
Can provide material inspection report
Materal no contact with the product components
304(1.4301)
Sealing material
Standard
silicon
Adopt sealing material with all the seal material the FDA 117.2600
