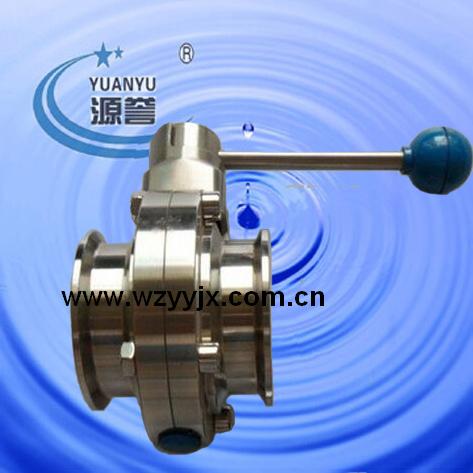

Food-grade Butterfly Valve



Inquire Add to Basket

Model:
YY1127
Origin:
Wenzhou Zhengjian China
Max order:
2000PCS/Month
Payment:
T/T

Food-grade Butterfly Valve

Material of valve: SUS304/SUS316L, AISI304, AISI316L
Size: DN12-DN200, 1/2"-10", 12.7mm-254mm
Standard of valve: DIN/SMS/3A/ISO/IDF/RJT
Material of seal: Silicone/EPDM/FPM FDA117.2600
Connection mode: Clamp/Clamp (Weld, Male, Female, Nut, Union, Flange can be chosen)
Certification: Material inspection report & CE certificate
Power: Pulling handle/multi-position plastic handle/multi-position stainless steel handle/electric actuator/pneumatic head
Three type of actuator: Normally open(NO), normally closed(NC), Air/Air(A/A)
Work principle: This kind of valve can be handled by manual or an electric actuator, and also can be handled by a pneumatic actuator.

Medium: Food, beverage, dairy, pharmacy.

Don't hesitate to contact us if you need more details of products. We can produce this kind of product according to your requirement if your specification is out of our standard.

CE Certificate can be provided.

Food-grade Butterfly Valve

Related Products

Split Butterfly Valve AB Valve Powder Valve For Containment Transfer

Mixproof Butterfly Valve For CIP System

Sanitary Pneumatic Butterfly Valve

Sanitary Butterfly Valve ( Stainless Steel Handle)

Stainless Steel Discharge Butterfly Valve

3-Way Sanitary Butterfly Valve with Pneumatic Actuator

Triclamp Butterfly Valve Center Suck Bolt Type

Triclamp Butterfly Valve Sanitary Stainless Steel

RJT Union Sanitary Butterfly Valve

Sanitary Tri-Clamp Butterfly Valve (Center Suck Bolt Type)

3A Male Female Butterfly Valve

Sanitary Ferrule Butterfly Valve

Sanitary Butterfly Valve With Plain End

Food-grade Butterfly Valve with Stainless Steel Multi-Position Handle

Sanitary Triclamp Butterfly Valve With Multi-position Handle

Explosion Proof Electric sanitary Butterfly Valve

Sanitary Butterfly Valve (DN15-DN600)

Sanitary Pneumatic Butterfly Valve (Aluminum)

Sanitary Pneumatic Butterfly Valve With Limit Switch Box

Sanitary Electric Butterfly Valve

Technical Data
Material	Contact with the product components	304/316L(1.4306/1.4404)	Can provide material inspection report
	Materal no contact with the product components	304(1.4301)
Sealing material	Standard	silicon	Adopt sealing material with all the seal material the FDA 117.2600
	Option	EPDM/FPM
Pressure	Pressure of work	0-10 bar
	Control air pressure	5-8 bar
Temperature	Working temperature	Silicon:(-50~+180ºC) EPDM(-20~+135ºC) FPM(-30~+230ºC)
	Sterilization temperature	150ºC(Max 20min)
Surface treatment	Inside surface treatment	Ra≥0.4-0.8μm
	Surface treatment	Ra≥0.8-1.6μm American type stainless steel stainless steel multi-position handle

Technical Data
Material	Contact with the product components	304/316L(1.4306/1.4404)	Can provide material inspection report
	Materal no contact with the product components	304(1.4301)
Sealing material	Standard	silicon	Adopt sealing material with all the seal material the FDA 117.2600
	Option	EPDM/FPM
Pressure	Pressure of work	0-10 bar
	Control air pressure	5-8 bar
Temperature	Working temperature	Silicon:(-50~+180ºC) EPDM(-20~+135ºC) FPM(-30~+230ºC)
	Sterilization temperature	150ºC(Max 20min)
Surface treatment	Inside surface treatment	Ra≥0.4-0.8μm
	Surface treatment	Ra≥0.8-1.6μm American type stainless steel stainless steel multi-position handle
