DIN Sanitary Male Butterfly Valve



Inquire Add to Basket

Model:
YY1105
Origin:
Wenzhou Zhengjian China
Max order:
2000PCS/Month
Payment:
T/T

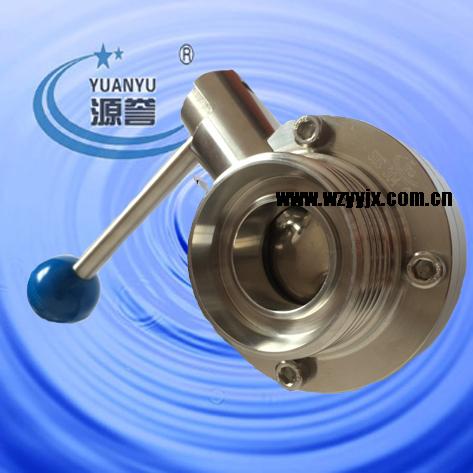

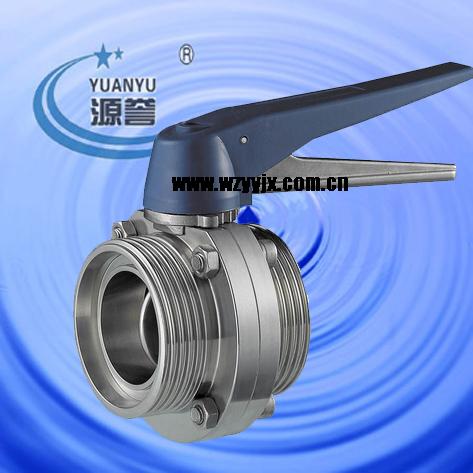

DIN Sanitary Male Butterfly Valve

1)Material of valve: SUS304/SUS316L, AISI304, AISI316L
2)Size: DN20-DN150
3)Standard of valve: DIN, 3A, SMS, ISO/IDF, BS/RJTASME/BPE,
4)Material of seal: Silicon//EPDM/FPM FDA117.2600
5)Connection mode:Male Connection （Weld, Triclamp, union,nut ,flange can be chosen）
6)Certification: Material inspection report
7)Power: Pulling handle/multi-position plastic handle/multi-position stainless steel handle/electric actuator/pneumatic head
8)Medium: Food, beverage, dairy, pharmacy.

Customized - upon your request
DIN MALE BUTTERFLY VALVE

Size	Thread	OD
DN25	RD52 ×1/6	28mm
DN32	RD58 ×1/6	35mm
DN40	RD65 ×1/6	40mm
DN50	RD78 ×1/6	53mm
DN65	RD95 ×1/6	70mm
DN80	RD110 ×1/4	85mm
DN100	RD130 ×1/4	101.6mm
DN104	RD130 ×1/4	104mm

DN125	RD160*1/4	129mm
DN150	RD190*1/4	154mm

Split Butterfly Valve AB Valve Powder Valve For Containment Transfer

Mixproof Butterfly Valve For CIP System

Sanitary Pneumatic Butterfly Valve

Sanitary Butterfly Valve ( Stainless Steel Handle)

Stainless Steel Discharge Butterfly Valve

3-Way Sanitary Butterfly Valve with Pneumatic Actuator

Triclamp Butterfly Valve Center Suck Bolt Type

Triclamp Butterfly Valve Sanitary Stainless Steel

RJT Union Sanitary Butterfly Valve

Sanitary Tri-Clamp Butterfly Valve (Center Suck Bolt Type)

3A Male Female Butterfly Valve

Sanitary Ferrule Butterfly Valve

Sanitary Butterfly Valve With Plain End

Food-grade Butterfly Valve with Stainless Steel Multi-Position Handle

Sanitary Triclamp Butterfly Valve With Multi-position Handle

Explosion Proof Electric sanitary Butterfly Valve

Sanitary Butterfly Valve (DN15-DN600)

Sanitary Pneumatic Butterfly Valve With Limit Switch Box

Sanitary Pneumatic Butterfly Valve (Aluminum)

Handle For Sanitary Butterfly Valve

Technical Data
Material	Contact with the product components	304/316L(1.4306/1.4404)	Can provide material inspection report
	Materal no contact with the product components	304(1.4301)
Sealing material	Standard	silicon	Adopt sealing material with all the seal material the FDA 117.2600
	Option	EPDM/FPM
Pressure	Pressure of work	0-10 bar
	Control air pressure	5-8 bar
Temperature	Working temperature	Silicon:(-50~+180ºC) EPDM(-20~+135ºC) FPM(-30~+230ºC)
	Sterilization temperature	150ºC(Max 20min)
Surface treatment	Inside surface treatment	Ra≥0.4-0.8μm
	Surface treatment	Ra≥0.8-1.6μm
Connection	Diameter Standard	DIN11850-2,DIN11850-1,3A,SMS,ISO,IDF,BS....
	Connection mode:	Male Connection （Weld, Triclamp, union,nut ,flange can be chosen）
Optional driven	Brainpower
	Pneumatic control	Pneumatic head and fixed bracket
Manual handle mode	pulling handle(round puling handle/ square pulling handle) Multi-position handle(stainless steel/plastic)

Technical Data
Material	Contact with the product components	304/316L(1.4306/1.4404)	Can provide material inspection report
	Materal no contact with the product components	304(1.4301)
Sealing material	Standard	silicon	Adopt sealing material with all the seal material the FDA 117.2600
	Option	EPDM/FPM
Pressure	Pressure of work	0-10 bar
	Control air pressure	5-8 bar
Temperature	Working temperature	Silicon:(-50~+180ºC) EPDM(-20~+135ºC) FPM(-30~+230ºC)
	Sterilization temperature	150ºC(Max 20min)
Surface treatment	Inside surface treatment	Ra≥0.4-0.8μm
	Surface treatment	Ra≥0.8-1.6μm
Connection	Diameter Standard	DIN11850-2,DIN11850-1,3A,SMS,ISO,IDF,BS....
	Connection mode:	Male Connection （Weld, Triclamp, union,nut ,flange can be chosen）
Optional driven	Brainpower
	Pneumatic control	Pneumatic head and fixed bracket
Manual handle mode	pulling handle(round puling handle/ square pulling handle) Multi-position handle(stainless steel/plastic)
