Auto control sanitary butterfly valve with sensor



Inquire Add to Basket

Model:
YYPBV-010
Origin:
Wenzhou Zhengjian China
Max order:
2000PCS/Month
Payment:
T/T

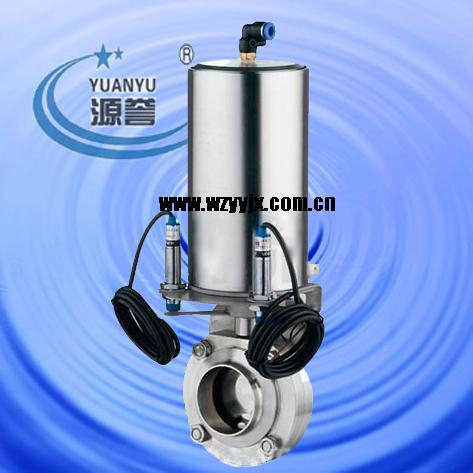

Auto Control Sanitary Butterfly Valve With Sensor

1)Material of valve: SUS304/SUS316L, AISI304, AISI316L
2)Size: DN20-DN150/1"-6"/25mm-152mm
3)Standard of valve: DIN, 3A, SMS, ISO/IDF, BS/RJTASME/BPE,
4)Material of seal: Silicon//EPDM/FPM FDA117.2600
5)Connection mode: Weld Connection (triclamp, male,union,flange,nut,3pcs) can be chosen
6)Certification: Material inspection report
7)Power: Pulling handle/multi-position plastic handle/multi-position stainless steel handle/electric actuator/pneumatic head
8)Medium: Food, beverage, dairy, pharmacy.

Customized - upon your request
sensor for sanitary butterfly valve

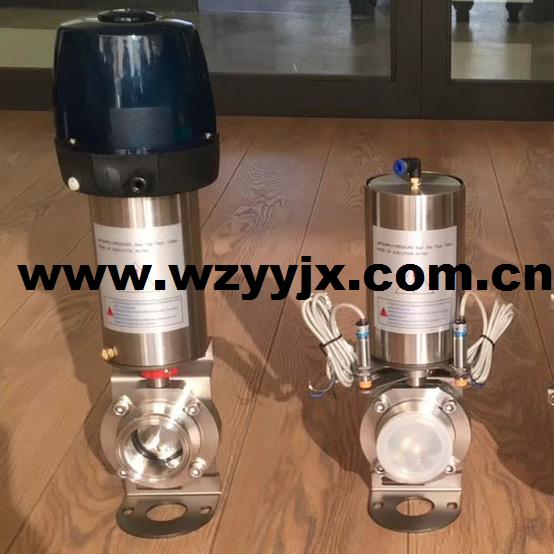

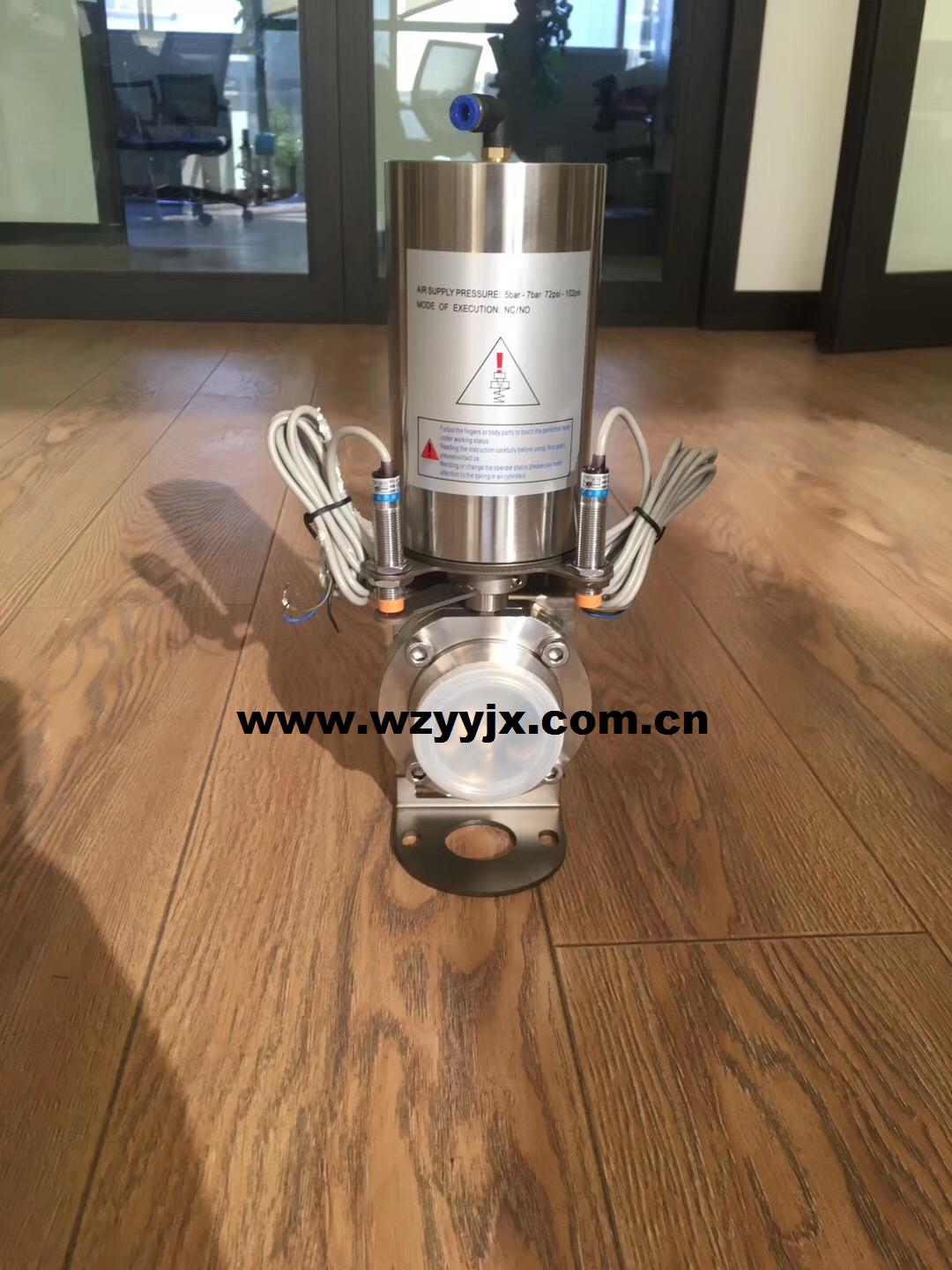

Sanitary Pneumatic Butterfly Valve with Position Sensor

Related Products

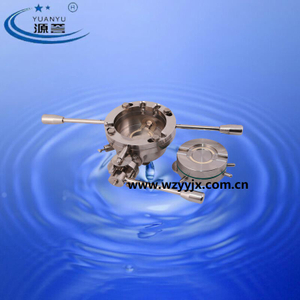

Split Butterfly Valve AB Valve Powder Valve For Containment Transfer

Mixproof Butterfly Valve For CIP System

Sanitary Pneumatic Butterfly Valve

Sanitary Butterfly Valve ( Stainless Steel Handle)

Stainless Steel Discharge Butterfly Valve

3-Way Sanitary Butterfly Valve with Pneumatic Actuator

Triclamp Butterfly Valve Center Suck Bolt Type

Triclamp Butterfly Valve Sanitary Stainless Steel

RJT Union Sanitary Butterfly Valve

Sanitary Tri-Clamp Butterfly Valve (Center Suck Bolt Type)

3A Male Female Butterfly Valve

Sanitary Ferrule Butterfly Valve

Sanitary Butterfly Valve With Plain End

Food-grade Butterfly Valve with Stainless Steel Multi-Position Handle

Sanitary Triclamp Butterfly Valve With Multi-position Handle

Explosion Proof Electric sanitary Butterfly Valve

Sanitary Butterfly Valve (DN15-DN600)

Sanitary Pneumatic Butterfly Valve (Aluminum)

Sanitary Pneumatic Butterfly Valve With Limit Switch Box

Handle For Sanitary Butterfly Valve

Technical Data
Material	Contact with the product components	304/316L(1.4306/1.4404)	Can provide material inspection report
	Materal no contact with the product components	304(1.4301)
Sealing material	Standard	silicon	Adopt sealing material with all the seal material the FDA 117.2600
	Option	EPDM/FPM
Pressure	Pressure of work	0-10 bar
	Control air pressure	5-8 bar
Temperature	Working temperature	Silicon:(-50~+180ºC) EPDM(-20~+135ºC) FPM(-30~+230ºC)
	Sterilization temperature	150ºC(Max 20min)
Surface treatment	Inside surface treatment	Ra≥0.4-0.8μm
	Surface treatment	Ra≥0.8-1.6μm
Connection	Diameter Standard	DIN11850-2,DIN11850-1,3A,SMS,ISO,IDF,BS....
	Connection mode:	Welded Connection (triclamp, male,union,flange,nut,3pcs)
Optional driven	Brainpower
	Pneumatic control	Pneumatic head and fixed bracket
Manual handle mode	pulling handle(round puling handle/ square pulling handle) Multi-position handle(stainless steel/plastic)

Technical Data
Material	Contact with the product components	304/316L(1.4306/1.4404)	Can provide material inspection report
	Materal no contact with the product components	304(1.4301)
Sealing material	Standard	silicon	Adopt sealing material with all the seal material the FDA 117.2600
	Option	EPDM/FPM
Pressure	Pressure of work	0-10 bar
	Control air pressure	5-8 bar
Temperature	Working temperature	Silicon:(-50~+180ºC) EPDM(-20~+135ºC) FPM(-30~+230ºC)
	Sterilization temperature	150ºC(Max 20min)
Surface treatment	Inside surface treatment	Ra≥0.4-0.8μm
	Surface treatment	Ra≥0.8-1.6μm
Connection	Diameter Standard	DIN11850-2,DIN11850-1,3A,SMS,ISO,IDF,BS....
	Connection mode:	Welded Connection (triclamp, male,union,flange,nut,3pcs)
Optional driven	Brainpower
	Pneumatic control	Pneumatic head and fixed bracket
Manual handle mode	pulling handle(round puling handle/ square pulling handle) Multi-position handle(stainless steel/plastic)
