YAV-1
500pcs/Month
Wenzhou Zhengjian China
T/T
OEM is welcome

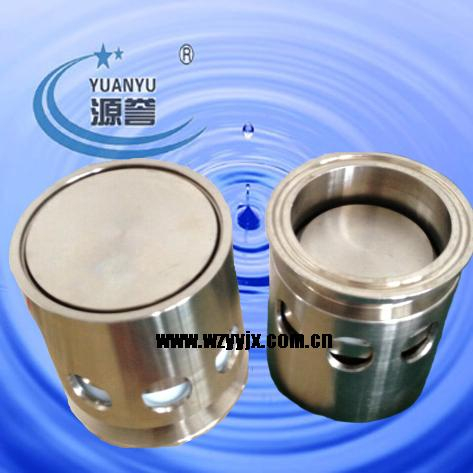

Sanitary Pressure Vacuum Relief Valve
Material:
SUS304,SUS316L,AISI304,AISI316L
Szie:
1"-2" ,DN25-DN50 ( Size 2.5"-4" can be ordered)
Application
This valve used in pressure vessel or pipe system, the air release valve has two functions:
when pressure is higher than the set pressure (standard 1 bar)release air, Otherwise is closed;
when the pipe system in vacuum (standard - 0.9 bar) valve automatically open. this to ensure the equipment and related instrument security, at the same time it can meet various production process demand. This valve with the full stainless steel materials, hygienic design, applied to all kinds of food processing, beer equipment, and pharmaceutical and other industrial fields.
Technical specifications
Connection: Clamp
DIN, 3A, SMS, IDF, ISO
pressure: 0.5...... 2 bar
vacuum: 0.3...... 0.9 bar
temperature: -10degree to 130degree
Sanitary Pressure Vacuum Relief Valve
Material:
SUS304,SUS316L,AISI304,AISI316L
Szie:
1"-2" ,DN25-DN50 ( Size 2.5"-4" can be ordered)
Application
This valve used in pressure vessel or pipe system, the air release valve has two functions:
when pressure is higher than the set pressure (standard 1 bar)release air, Otherwise is closed;
when the pipe system in vacuum (standard - 0.9 bar) valve automatically open. this to ensure the equipment and related instrument security, at the same time it can meet various production process demand. This valve with the full stainless steel materials, hygienic design, applied to all kinds of food processing, beer equipment, and pharmaceutical and other industrial fields.
Technical specifications
Connection: Clamp
DIN, 3A, SMS, IDF, ISO
pressure: 0.5...... 2 bar
vacuum: 0.3...... 0.9 bar
temperature: -10degree to 130degree
