Alfa Laval Type
100PCS/Month
T/T
OEM is welcome

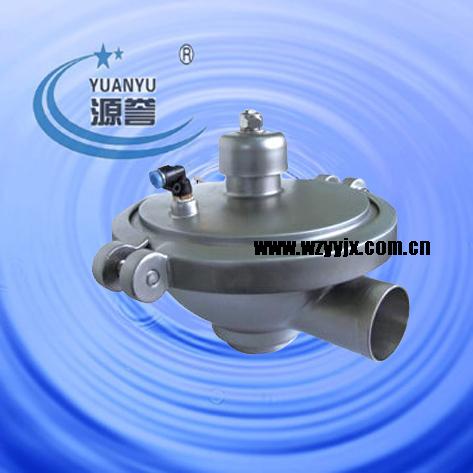

Sanitary Constant Pressure Adjust Valve
Material:
AISI304,AISI316L, SUS304,SUS316L
Size:
1"1.5”,2” / 25mm,38mm,51mm
Surface Treatment:
Sand-blasting outside, mirror polished inside
Material of diaphragm:
Up diaphragm: NBR down diaphragm: PTFE+EPDM Use import material, all fit with FDA 117.2006
Pressure(air pressure):
0bar-6bar
Flow rate:
2-23m³/h
Temperautre:
-10 degree to 95 degree (standard)
-10 degree to 140 degree (can be chosen according to requirement)
Connection type:
Welded (DIN11850, DIN11851, SMS, 3A, ISO and so on)
Work principle:
This kind of valve is remotely operated by compressed air.
Pressure and flow can be controlled by pneumatic operator.
Application:
Sanitary Constant Pressure Adjust Valve which its outlet and inlet to ensure a stable pressure, so widely used in separators,heat exchangers, the back of canned systems and other equirement,also use as the relief valve.
As a manufacturer, we can produce according to customer's requirement.
