Size: 1/2" 3/4" 1" Material of Pipe: SS304/316L Structure: Spiral Standard: GB/T 14525-2010 The colour of PVC: coating: Blue, Red, White, Yellow etc (Can be ordered)

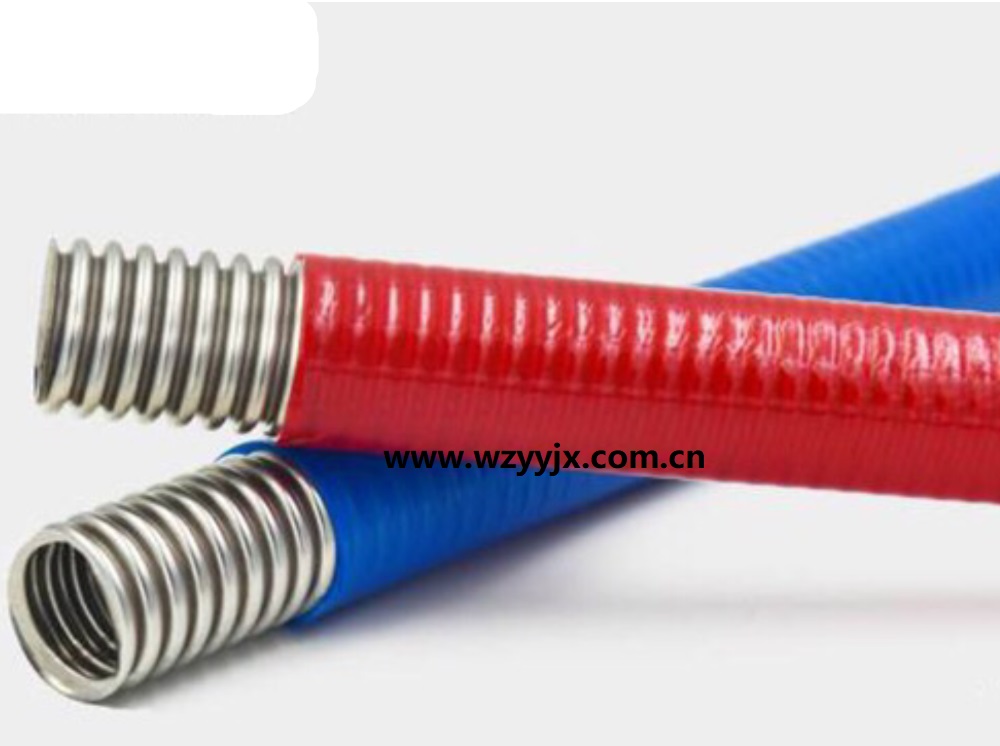

Spiral pipe (Inside)+ PVC coating (Outside)
Temperature: -20~+120oC Pressure: 2.4Mpa
Advantage:

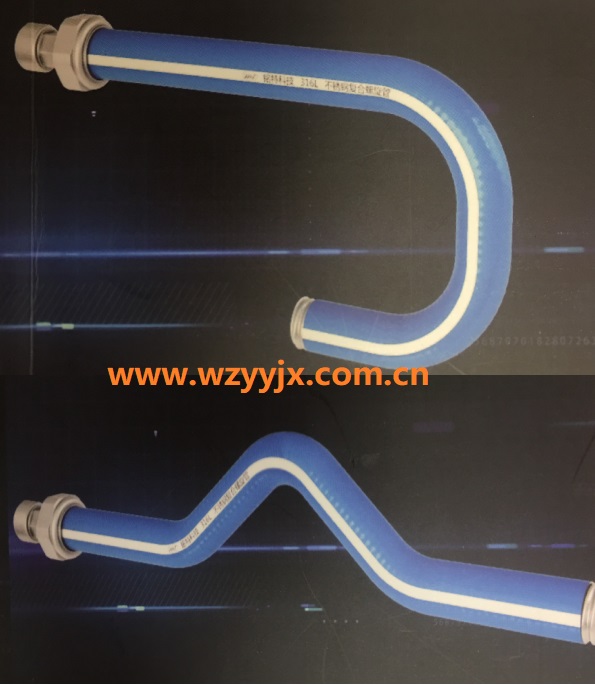

1/environmental protection /healthy 2/Accept high temperature and high pressure 3/Impact resistance and vibration resistance 4/Durable (100+ years) 5/Arbitrary bending without dead ends 6/No accumulation of dirt. 7/Convenient construction
Application: Water supply and drainage ; Food prodcution ; Solar energy ; pharmacy ; Geothermal heating etc.

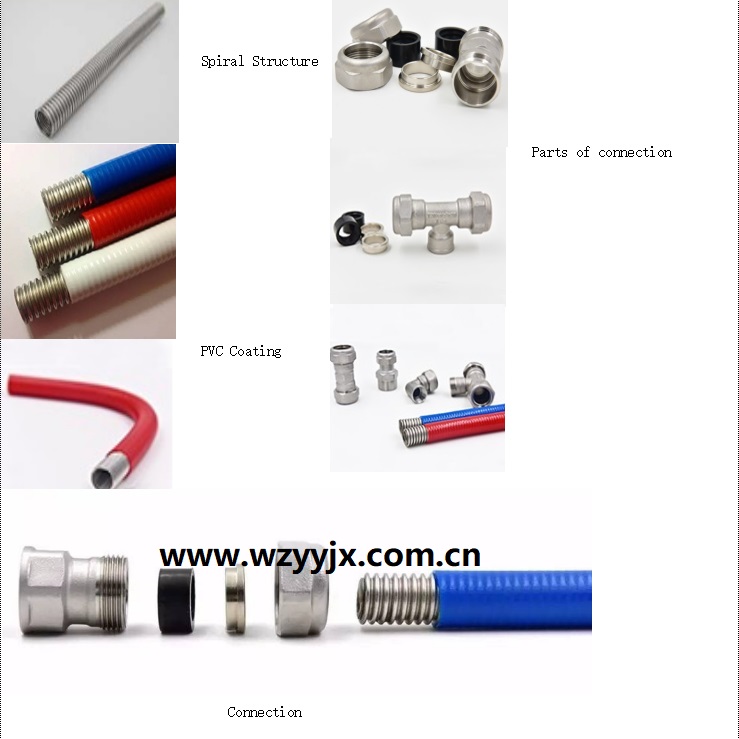

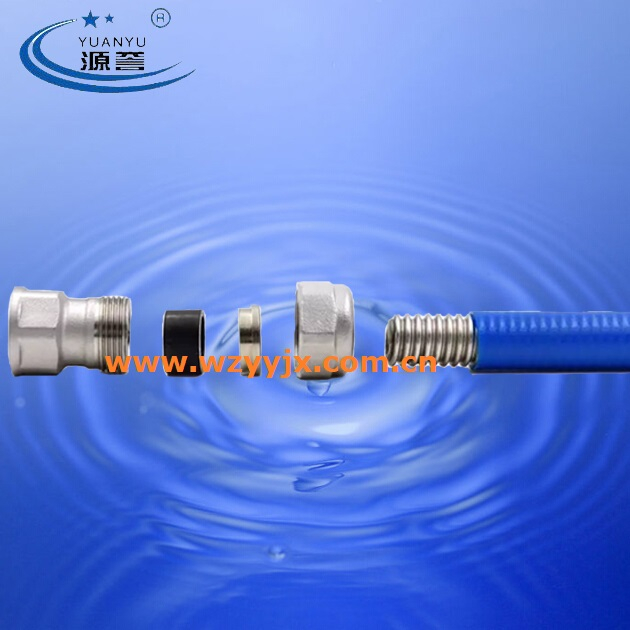

Parts of connection: Gasket, flange, thread tee, thread elbow, thread cap, thread nipple, thread coupling, thread plug, etc.
Certificate: GB/T19001-2016 idt ISO9001:2015 Drinking water hygiene permit VERIFICATION OF MD COMPLIANCE (VOV Certificate) EN ISO 12100:2010 EN 60204-1:2006+A1:2009 CE Certicate Material testing Report
