1)Specification: DN15-125, 1/2" -4" 2)Standard: DIN\3A\SMS\ISO\IDF 3)Material: SUS304\SUS316L, AISI304, AISI316L 4)Connection mode: Weld, clamp, thread can be chosen 5)Seal: EPDM/NBR 6)Screen: Metal mesh/perforated plate 7)Work pressure: 0~10bar. 8)Work temperature: -20~135degree(EPDM as seal) 9)Temperaturerange: -10~250degree. 10)Application: Beer, Milk, Beverage, Pharmacy 11)Screen: Metal mesh, perforated plate. 12)Type of body: Angle type
Work priciple: When with larger solid particles or impurity of media through the filter, these larger solid paticles and impurites will be fitered and stay in certain specification filter inside. Thus preventing the solid particles and impurities into subsequet pipes, filtered medium criterion by export outflow, achieve the requirement.
Please don't hesitate to contact us if you need more details of product or drawing.

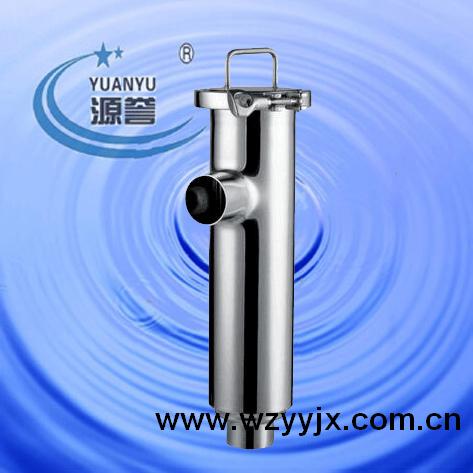

Sanitary Angle Type Filter
1)Specification: DN15-125, 1/2" -4" 2)Standard: DIN\3A\SMS\ISO\IDF 3)Material: SUS304\SUS316L, AISI304, AISI316L 4)Connection mode: Weld, clamp, thread can be chosen 5)Seal: EPDM/NBR 6)Screen: Metal mesh/perforated plate 7)Work pressure: 0~10bar. 8)Work temperature: -20~135degree(EPDM as seal) 9)Temperaturerange: -10~250degree. 10)Application: Beer, Milk, Beverage, Pharmacy 11)Screen: Metal mesh, perforated plate. 12)Type of body: Angle type
Work priciple: When with larger solid particles or impurity of media through the filter, these larger solid paticles and impurites will be fitered and stay in certain specification filter inside. Thus preventing the solid particles and impurities into subsequet pipes, filtered medium criterion by export outflow, achieve the requirement.
Please don't hesitate to contact us if you need more details of product or drawing.
