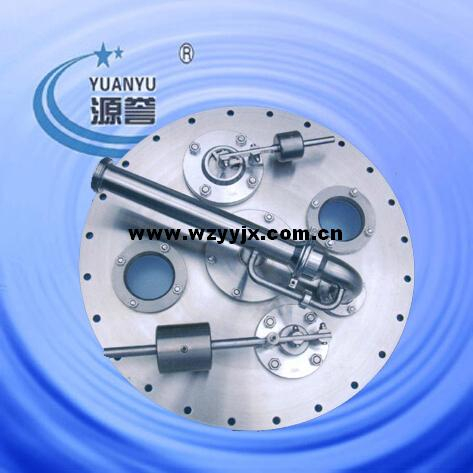

This assembly is suitable for beer industry etc. It is installed on the top of 60-400M3 fermentation tank and clear wine tank. The assembly consists of flange flat cover, check valve(air-liquid shunt), deadweight a utomatic exhaust valve (spring adjustable valve),deadweight anti-vacuum valve( spring anti-vacuum valve), visual mirror and tank cleaner(cleaning ball).It can be used to keep pressure, stabilize pressure, avoid vacuum, retrieve gases etc.
Fluid Equipment For Fermentation Tank
This assembly is suitable for beer industry etc. It is installed on the top of 60-400M3 fermentation tank and clear wine tank. The assembly consists of flange flat cover, check valve(air-liquid shunt), deadweight a utomatic exhaust valve (spring adjustable valve),deadweight anti-vacuum valve( spring anti-vacuum valve), visual mirror and tank cleaner(cleaning ball).It can be used to keep pressure, stabilize pressure, avoid vacuum, retrieve gases etc.
Size A B C D E 650 DN50 125 20 650 1200 700 DN50 125 20 700 1200 720 DN50 125 22 720 1200 750 DN50 125 24 750 1200
Size A B C D E 650 DN50 125 20 650 1200 700 DN50 125 20 700 1200 720 DN50 125 22 720 1200 750 DN50 125 24 750 1200
