| Technical Data |
| Material | Body Of Valve | Investment Casting
316L(EN1.4409 CF3M) | Can provide material inspection report |
| Sealing Material | Standard | EPDM+PTFE | Adopt sealing material with all the
seal material the FDA 117.2600 |
| Option | EPDM |
| Pressure | Pressure of work | 0-10 bar |
| Control air pressure | 5-8 bar |
| Temperature | Working temperature | EPDM(-40 ~+130 degree), EPDM+PTFE(-5~+160degree) |
| Sterilization temperature | 150ºC(Max 20min) |
| Surface Teatment | Inside surface treatment | Ra≦0.375µm (SF4) |
| Outside surface treatment | Sand blasting / Ra≦0.5µm (SF1) Can be chosen |
| Connection | Diameter Standard | DIN, 3A, ASME/BPE, ISO/IDF, BS/RJT, SMS,etc |

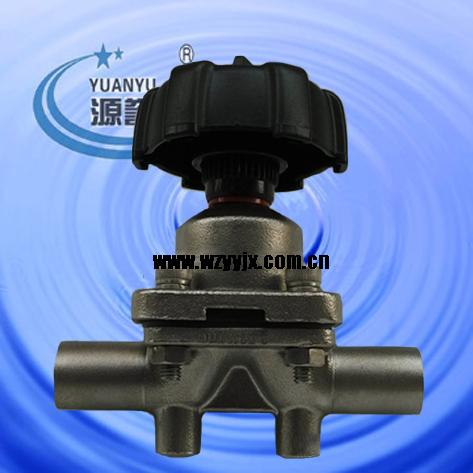

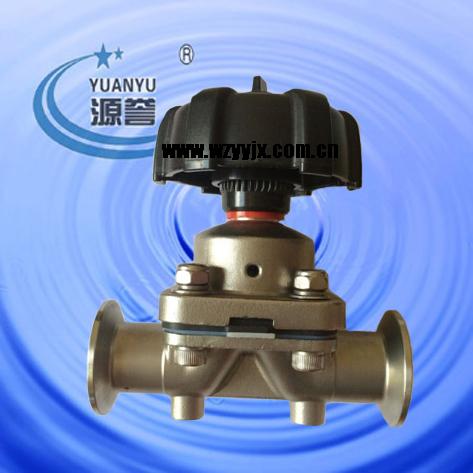

| Connection mode: | Clamp end (Butt-weld can be chosen) |

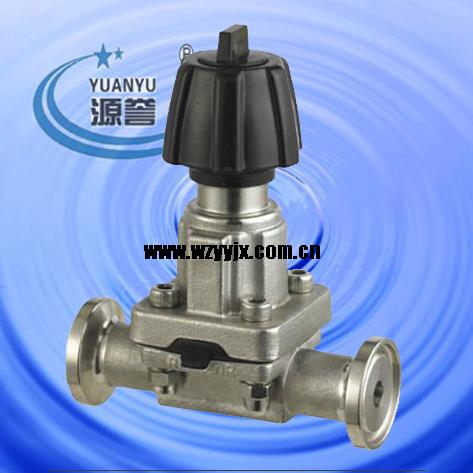

| Control Function | Manually Operated |

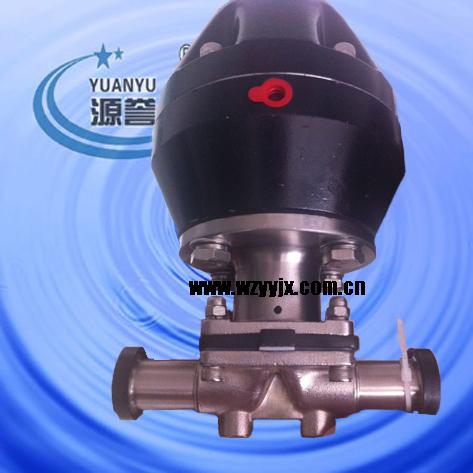

| Pneumatic Actuator Control (Normally Close, Normally Open, Double Action) |
| Body Shape | Staight Type (T type, U type, L type, Multi-way )Can be chosen |
